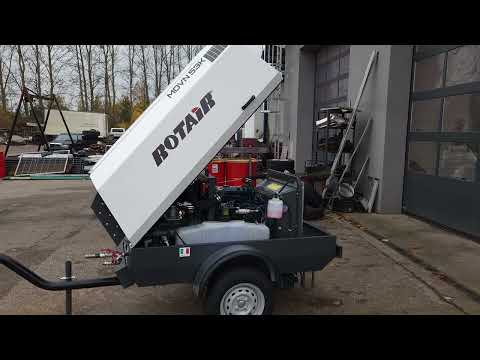

Mobile screw compressor

Rotair MDVN 52 Eco 5

Mobile diesel compressor Rotair MDVN 52 Eco 5 – 7 bar, 5.2 m³/min, 5200 l/min, Stage V.
- Immediately available – 1 unit in stock

For sale is a professional mobile screw compressor, Rotair MDVN 52 Eco 5, with a diesel engine, 7 bar working pressure, and an air output of 5200 l/min. This construction compressor is designed for daily use on construction sites, in civil engineering, fiber optic installation, cable laying, road construction, pipeline construction, industrial applications, and service work.

The mobile compressed air compressor is ideal for applications such as fiber optic blowing, cable blowing equipment, earth augers/soil displacement hammers, sandblasting, soda blasting, dry ice blasting, pneumatic tools, pneumatic hammers, cleaning work, and general construction site compressed air supply.

Thanks to its compact design, low weight, and full European road approval, the compressor can be easily transported. The unit weighs less than 750 kg in any configuration and can therefore be used very flexibly as a lightweight trailer.

Technical data:

* Manufacturer: Rotair
* Model: MDVN 52 Eco 5
* Machine type: mobile diesel compressor / screw compressor / construction compressor
* Air output: 5200 l/min / 5.2 m³/min / 184 cfm
* Working pressure: 7 bar / 102 psi
* Engine: Hatz 3H50TICD, Stage V
* Engine power: 42 kW / 56 hp
* Cooling: water-cooled
* Turbocharger: yes
* Outlet valves: 2 × 3/4"
* Weight: approx. 750 kg
* Dimensions: approx. 178 × 143 × 137 cm
* Full European road approval
* Lightweight and compact design
Bodpfxozdgaqj Apajww

Features and advantages:

* modern, fuel-efficient, and powerful Stage V diesel engine
* reliable screw compressor for professional construction sites
* compact dimensions and very good power-to-weight ratio
* galvanized chassis and robust housing
* easy maintenance due to very good access to service points
* spin-on filter for quick maintenance
* automatic pneumatic ROTAIR control system for speed regulation depending on air demand
* enlarged air/oil separator for very good air-oil separation
* separate filters for engine and compressor unit
* combined cooler for compressor oil and engine cooling
* intelligent start/stop system to prevent incorrect operation
* reliable compressed air supply for demanding applications

Application areas:

* Fiber optic expansion and cable blowing
* Civil engineering and pipeline construction
* Sandblasting and soda blasting
* Dry ice blasting
* Earth augers / soil displacement
* Operation of pneumatic tools
* Road construction and construction site supply
* Industry, service and maintenance

Available variants of the series:

* 7 bar – 5.2 m³/min
* 10 bar – 4.1 m³/min
* 12 bar – 4.0 m³/min
* 14 bar – 3.1 m³/min

Optional equipment depending on configuration:

* Compressed air heater
* Fuel saving system
* Aftercooler with water separator
* Adapter for stationary installation on legs

The Rotair MDVN 52 Eco 5 is a versatile mobile diesel compressor for companies that are looking for a powerful, compact, and easily transportable construction compressor with 7 bar and 5.2 m³/min.

Technical advice, availability, and individual offers are available upon request.

Intra-community delivery net, excluding VAT, is possible with a valid VAT ID.
